Stryüm
Aluminium Interlocking Panels
Stryüm is a fully tested and complaint rainscreen system. The system was tested with all cavity battens and trims, this means they are not standalone products but part of the full rainscreen system which achieve full compliance. This systemised approach simplifies the process for builders and installers by offering an all-in-one solution, reducing the complexities of compliance across various stages of construction.
Key Benefits
Stryüm offers a range of industry-leading benefits, from non-combustibility and versatile design options to exceptional durability.
-
Stryum has been tested by the CSIRO to AS1530.1 and AS1530.3 and is deemed a non-combustible building material. Please note AS1530.1 testing on our Woodgrain range is pending.
-

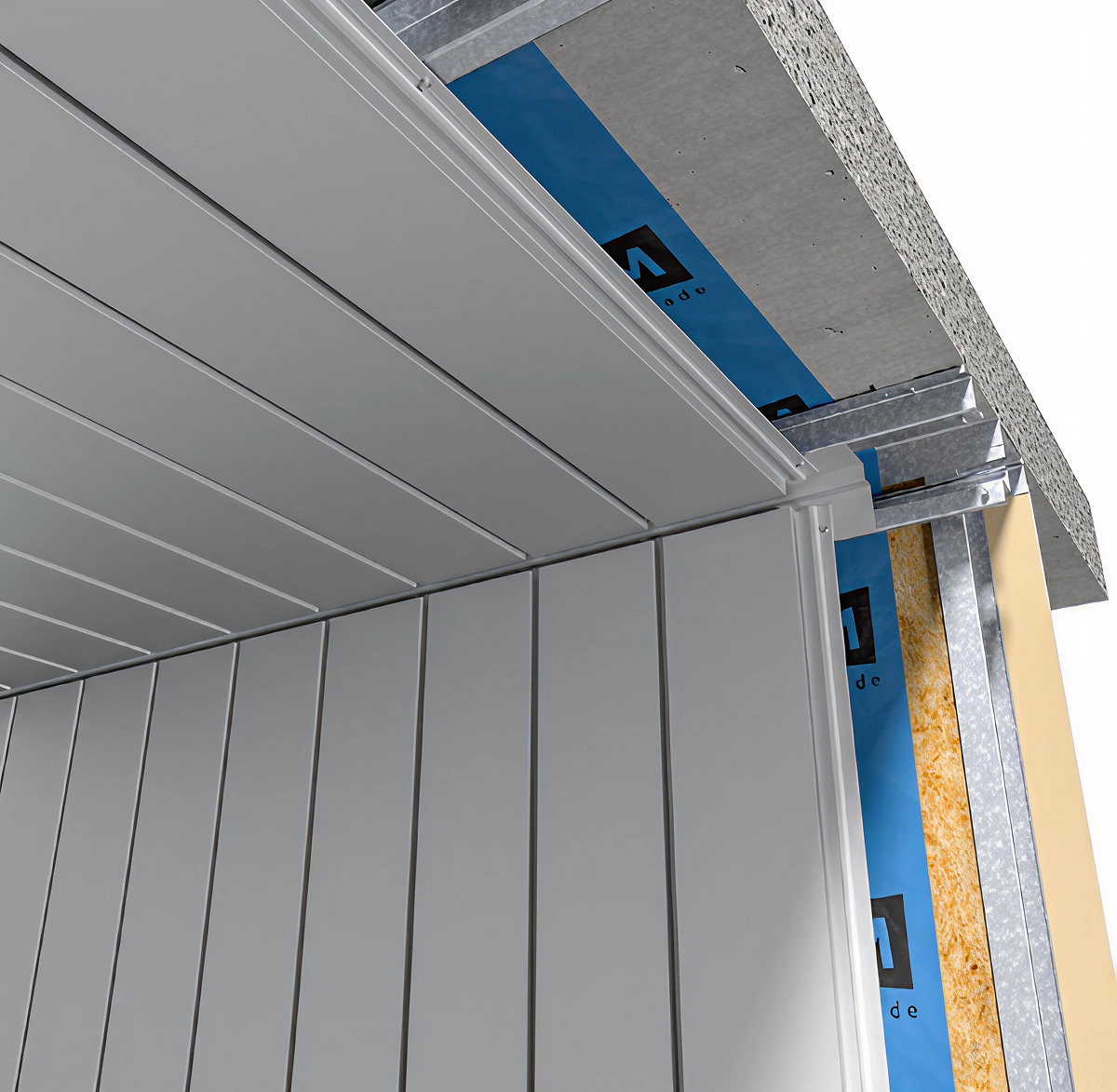

Stryüm features top-notch thermal performance and a ventilated rainscreen system.
-
Stryüm’s boards interlock with pre-loaded strength, as well as overlap to conceal fixings and eliminate the need for external sealants and top hats.
-
Designed with fast and easy installation in mind, the full system of trims and accessories means there is no need for onsite fabrication.
-
Australia's Premium Interlocking Linear Panel System is most widely tested and has CodeMark certification.
-
10 unique profiles with horizontal and vertical options, endless colour choices with textures you can see and feel, offer unparalleled design scope.
-
Our raw aluminium material, anodizing and powder-coating processes make for a product which an unmatched level of quality in design, aesthetic, and durability.
-
Stryüm comes with a 15-year warranty as standard, subject to terms and conditions
Product Specifications
The typical composition of Stryüm incorporates two elements – extruded solid aluminium and applied finish. In comparison to cassette style ACPs, this interlocking façade system requires minimal fabrication, resulting in lower installation costs and increased efficiency.
Explore Stryüm Profiles
We have eight profiles designed for architectural impact: Shadow's sleek, flat design has refined shadow-line joins, Step's bold, cascading joins create a striking façade, and Seam's standing seams cast dynamic shadows for a modern edge.
SH300
SH200
SH160
SH90/90
SH170/95
SE260
SE130/130

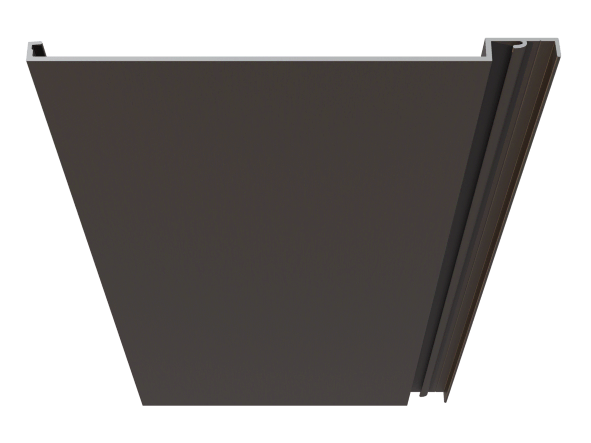

SH300
Shadow 300
Shadow’s brilliance lies in its simplicity. From the installation process, to the sustainability factor and finish
Overview
- Thickness 3.5mm
- Weight 11.29kg/m²
- Length 4.8m or 7m
- Coverage 300mm per panel

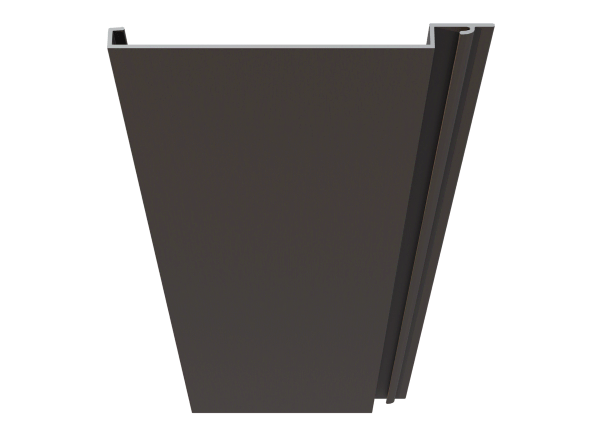

SH200
Shadow 200
Shadow’s brilliance lies in its simplicity. From the installation process, to the sustainability factor and finish options – Shadow makes simple special.
Overview
- Thickness 2.5mm
- Weight 8.82kg/m²
- Length 4.8m or 7m
- Coverage 200mm per panel

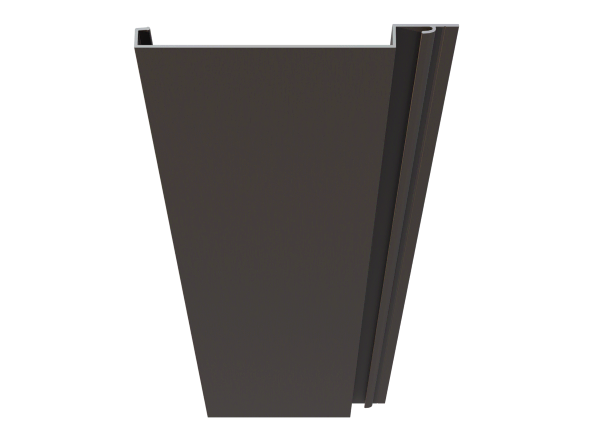

SH160
Shadow 160
Shadow’s brilliance lies in its simplicity. From the installation process, to the sustainability factor and finish options – Shadow makes simple special.
Overview
- Thickness 1.8mm
- Weight 6.9kg/m²
- Length 4.8m or 7m
- Coverage 160mm per panel

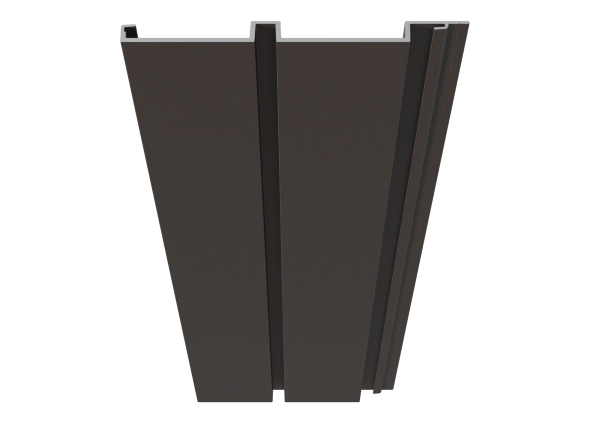

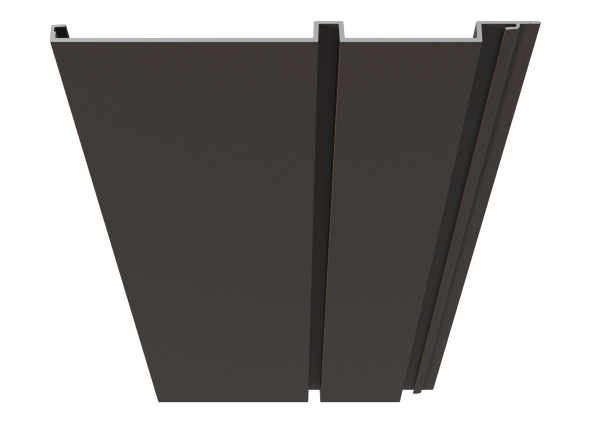

SH90/90
Shadow 90/90
Shadow’s brilliance lies in its simplicity. From the installation process, to the sustainability factor and finish options – Shadow makes simple special.
Overview
- Thickness 2mm
- Weight 8.11kg/m²
- Length 4.8m or 7m
- Coverage 186.1mm per panel
SH170/95
Shadow 170/95
Shadow’s brilliance lies in its simplicity. From the installation process, to the sustainability factor and finish
Overview
- Thickness 3mm
- Weight 10.94kg/m²
- Length 4.8m or 7m
- Coverage 271.1mm per panel

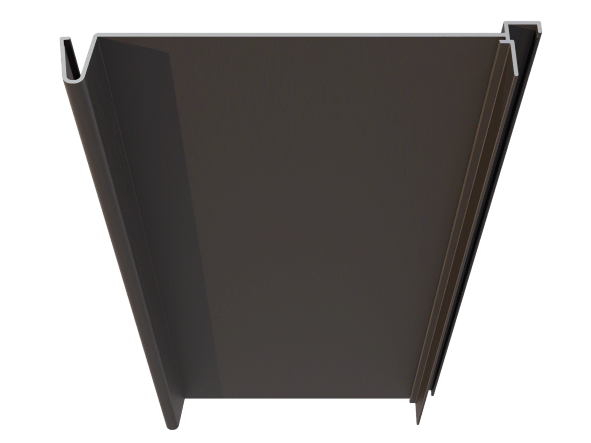

SE260
Seam 260
Bold and unrestrained – the standing seam sits proud above the façade – reacting to the environment and casting shifting shadows as light conditions change.
Overview
- Thickness 2.8mm
- Weight 11.07kg/m²
- Length 4.8m or 7m
- Coverage 260mm per panel

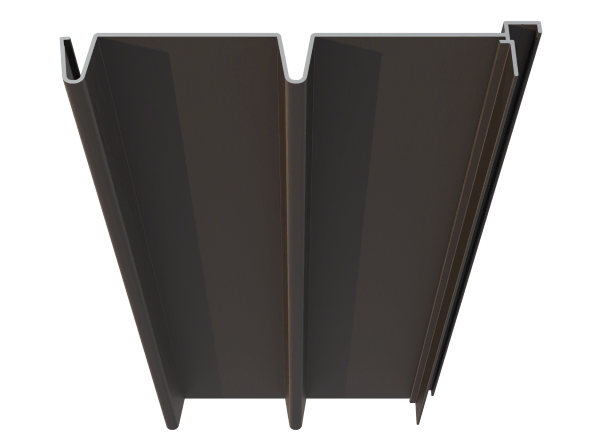

SE130/130
Seam 130/130
Bold and unrestrained – the standing seam sits proud above the façade – reacting to the environment and casting shifting shadows as light conditions change.
Overview
- Thickness 2.8mm
- Weight 12.69kg/m²
- Length 4.8m or 7m
- Coverage 260mm per panel
Stryüm Colours
We offer New Zealand's largest colour range and extensive stock.
-
-
Black
9E19190F
Rhodium
9E27903F
Dark Bronze
9E28184F
FlaxpodⓇ
9E19145F
Gold Ore
9E22270F
Granite
9E27888F
Magnetite
9E27725F
Natural Bronze
9E38341F
Silver
9E27756F
Stone
9E23245F
Weathered Steel
9E28340F
White
9E11373F
Black
9E19190F
Rhodium
9E27903F
Dark Bronze
9E28184F
FlaxpodⓇ
9E19145F
Gold Ore
9E22270F
Granite
9E27888F
Magnetite
9E27725F
Natural Bronze
9E38341F
Silver
9E27756F
Stone
9E23245F
Weathered Steel
9E28340F
White
9E11373F
-
Fine Gold Pearl Kinetic®
91T8360M
Vintage Copper Pearl Kinetic®
91T8431M
Warm White Pearl Kinetic®
91T1173S
Metro Silver Pearl Kinetic®
91T7317S
Silver Star Kinetic®
91T7335S
Silver Pearl Kinetic®
91T7160S
Copper Metallic Kinetic®
91T7183M
Champagne Kinetic®
91T3059M
Electric Cow Kinetic®
91T8153M
Window Bronze Kinetic®
91T8068M
Gunmetal Metallic Kinetic®
91T8115M
Coal Dust Kinetic®
91T9100M
Fine Gold Pearl Kinetic®
91T8360M
Vintage Copper Pearl Kinetic®
91T8431M
Warm White Pearl Kinetic®
91T1173S
Metro Silver Pearl Kinetic®
91T7317S
Silver Star Kinetic®
91T7335S
Silver Pearl Kinetic®
91T7160S
Copper Metallic Kinetic®
91T7183M
Champagne Kinetic®
91T3059M
Electric Cow Kinetic®
91T8153M
Window Bronze Kinetic®
91T8068M
Gunmetal Metallic Kinetic®
91T8115M
Coal Dust Kinetic®
91T9100M
-
Juicy Lime
90N6486S
Reef
90N5011G
Tomcat
90N4383G
Moonlight
90N2004S
Leaf
90N6167S
Coast
90N5233S
Flame
90N4007G
Sunshine
90N2084G
Evergreen
90N6005S
Storm
90N5365S
Desert
90N4227S
Juicy Lime
90N6486S
Reef
90N5011G
Tomcat
90N4383G
Moonlight
90N2004S
Leaf
90N6167S
Coast
90N5233S
Flame
90N4007G
Sunshine
90N2084G
Evergreen
90N6005S
Storm
90N5365S
Desert
90N4227S
-
Appliance White (Satin)
90Z1341S
Appliance White (Matt)
90Z1274M
Arctic White
90Z1342S
Off White
90Z3144M
Titania
90Z2068M
Canvas Cloth
90Z7327M
Desert Sand
90Z3065M
Sandstone Grey
90Z7217M
New Denim Blue
90Z5063M
Grey Friars
90Z7167M
Flaxpod®
90Z9145M
Charcoal
90Z9081M
Ironsand
90Z8109M
Black
90Z9238M
Appliance White (Satin)
90Z1341S
Appliance White (Matt)
90Z1274M
Arctic White
90Z1342S
Off White
90Z3144M
Titania
90Z2068M
Canvas Cloth
90Z7327M
Desert Sand
90Z3065M
Sandstone Grey
90Z7217M
New Denim Blue
90Z5063M
Grey Friars
90Z7167M
Flaxpod®
90Z9145M
Charcoal
90Z9081M
Ironsand
90Z8109M
Black
90Z9238M
-
Snow Birch
S8100
American Beech
S8220
Bright Pine
S8907
Tan Ash
S8908
Golden Pecan
S8680
Antique Oak
S8431
Dark Walnut
S8434
Red Maple
S8515
English Chestnut
S8453
Royal Mahogony
S8456
Dark Teak
S8470
Charcoal Oak
S8909
Silver Oak
S8901
Ashbox
S8906
Tasmanian Oak
S8903
Ironbark
S8905
Koa
S8900
Eastern Cedar
S8904
Blue Gum
S8902
Snow Birch
S8100
American Beech
S8220
Bright Pine
S8907
Tan Ash
S8908
Golden Pecan
S8680
Antique Oak
S8431
Dark Walnut
S8434
Red Maple
S8515
English Chestnut
S8453
Royal Mahogony
S8456
Dark Teak
S8470
Charcoal Oak
S8909
Silver Oak
S8901
Ashbox
S8906
Tasmanian Oak
S8903
Ironbark
S8905
Koa
S8900
Eastern Cedar
S8904
Blue Gum
S8902
-
Qualifications
Stryüm meets rigorous industry standards and qualifications, ensuring safety and reliability.
-
Stryum has been tested by the CSIRO to AS1530.1 and AS1530.3 and is deemed a non-combustible building material. Please note AS1530.1 testing on our Woodgrain range is pending.
-
Stryüm is Codemark certified. Certificate available here
